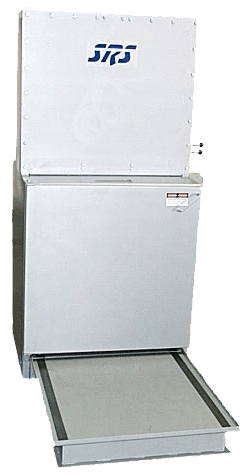

VersApak Industrial Compactors and Drum Crushers
VersApak is designed to crush within1 yard box, drum, and overpak compactor (3 Units in 1) and are equipped with interchangeable platens and a unique dual force ram system to enable multiple applications. A single control switch delivers 20,000 lb. compacting force within cubic yard/meter boxes without damaging container & pallet. A drum setting delivers 40K-90Klb. to compact within drums or crush them.
The VersApak features a unique dual force ram system to apply 20,000 pounds of force to compact waste material in DOT approved cubic yard (meter) boxes, and a 40,000 or 90,000 pounds setting to compact or crush drums. The exclusive 10 inch Hydraulic RAM system prevents side loads, while the E-Z Load Tray allows an operator to easily move heavy filled drums in and out the compaction chamber. A complete family of compactors and drum and pail crusher designs offer robust and affordable systems for all applications. All models are available with a variety of power options including electric and pneumatic suitable for Class 1, Division 1 environments.
VersApak's (3 Units in 1) Cuts Disposal Costs By Up To 90%
Drum Crushers/Drum Compactors can be used in following industries:
- Manufacturing plants
- Processing Plants
- High-tech industries
- Treatment and disposal facilities
- Research laboratories
- Hospitals and medical clinics
- And more....
Features and Options Include:
- EZ-Load barrel tray (see image below)
- Caster Wheels
- Liquid removal system
- Hazardous location (Explosion Resistant Package)
- Key starter
- Epoxy paint
- Weather covers
- Liquid removal system
- VOC and dust filter system
- Tall drum chamber (For 85 gallon drums)
- Air filter systems HEPA/ULPA/Charcoal Beds
Compaction Ratio:
| Paint Filters |
6:1 - 9:1 |
| Rags, cloths, gloves |
4:1 - 8:1 |
| Absorbent materials (socks) |
4:1 - 7:1 |
| Resins |
4:1 - 8:1 |
| Paint Cans |
12:1 - 15:1 |
| Plastic Bottles |
12:1 - 15:1 |
| Drum Crushing Compaction |
6:1 - 14:1 |
By simply changing an easily removable platen, these systems are designed to compact waste within 55 or 90 gallon drums, or serve as a drum crusher. Custom designs offer solutions to hazardous locations and low level radiation applications.
Specifications:
| Specifications: |
VersApak-40 |
VersApak-60 |
| Height |
93" |
98" |
Footprint (Electric)
(Gas)
(Pneumatic) |
34" x 34"
34" x 56"
34" x 34" |
42" x 34"
42" x 56"
42" x 34" |
Weight (Electric)
(Gas)
(Pneumatic) |
2400 Lbs
2300 Lbs
1700 Lbs |
2500 Lbs
2400Lbs
1850 Lbs |
| Compaction Capacity |
Up to 85 Gallons |
| Compaction Force |
40,000 Lbs |
60,000 Lbs |
Cycle time(Electric)
(Gas)
(Pneumatic) |
15-42 Sec
42 Sec
113 Sec |
15-60 Sec
50 Sec
120 Sec |
Exclusive 10" Heavy-Duty Hydraulic Ram System
 SRS offers four compactor systems currently approved by the U.S. General Services Administration (GSA) |
