Methanol Recovery

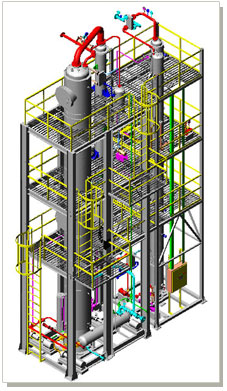

SRXC-Series - Single or Dual Column Designs

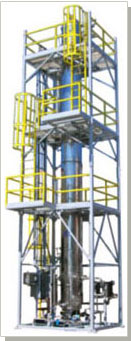

The SRXC-Series is a completely automated methanol recovery system for recovering methanol from crude glycerin produced in the biodiesel production process. The SRXC system is designed to remove water and other of contaminants from glycerin, and to recover clean, dry methanol with a purity exceeding 99.5%. The SRXC employs a specially designed fractionating column with a reflux stream is used to separate the materials in a continuous mode on a 24-hour basis for biodiesel plants producing from 500,000 to over 100 million gallons per year.
Real testimonials on SRS' Methanol Recovery Systems
The SRXC-Series Removes Methanol from the Glycerin Stream
- 99.9% Purity Range
- Removes Methanol from Glycerin Stream
- Reduces Glycerin stream to 0.05% Methanol (Non-hazardous)
- Automatic self adjusting control system for variable parameters
- Skid mounted on a galvanized steel tubular frame
- Continuous Operation
- Pre-wired and tested prior to delivery at customer site
ASV-Series
Recovers excess Methanol allowing for cleaner unwashed fuel
- Methanol is directed to storage tank for high purity column processing
- Reduces typical wash times associated with dry/wet washing
- Reduces dry wash consumables and/or longer wear life of Ion materials
SRXC & ASV Series - Features and Safeties:
- Class 1, Division 1 rated system to handle all explosive atmosphere conditions
- PLC Control System for program monitoring and adjustments for added troubleshooting capabilities
- Any fault conditions are diagnosed and clear status messages are displayed on the touch screen controller panel to ensure operator safety and ease of operation.
- System automatically shuts off in the event of a fault condition or at the end of the cycle
- Color touch screen microprocessor control panel and message center displays time stamped alarm and historical data with NEMA 4, pre-wired & assembled NEMA 4X enclosure, main fusible disconnect, houses all cables for Column devices, pumps and valves (Air Purged for Class 1 Division 1)
- Displays and complete adjustment of all metering pumps
- Maintenance Screen for troubleshooting
- Manual or Automatic control
- Temperature adjustment and display of RTD’S in the system.
- All faults displayed on monitored devices including critical shutdown and alarming.

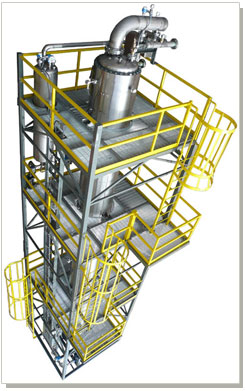

The system is skid mounted on a galvanized steel tubular self supporting frame with anchor attachments, consisting of 3 sections with single point connections for E-Z field installation.
SRS engineers have significant experience with many major brands and types of Programmable Logic Controllers (PLC) and Distributed Control Systems (DCS). SRS’ experience also includes the ability to program and integrate many major Human-Machine Interface (HMI) software packages.
- Programmable Logic Control (PLC) Systems
- Distributed Control Systems (DCS)
- Human Machine Interface (HMI) Applications
- IEC 1131-3 Programming Standards
- Advanced Control Concepts
|
DCS
|
PLC
|
HMI & Batch
|
- DCS PLC HMI & Batch
- ABB Bailey INFI 90
- ABB Fischer & Porter DCI
- Allen-Bradley
- ProcessLogix
- Delta V
- Fisher-Rosemount RS3
- Honeywell TDC/TPS Systems
- Honeywell Plantscape
- Honeywell Experion
- Siemens Simantic PCS
- Siemens Moore APACS
|
- Allen-Bradley SLC
- Allen-Bradley PLC5
- Allen-Bradley
- ControlLogix
- Allen-Bradley
- MicroLogix
- General Electric
- 90/70
- Koyo DirectLogic
- Modicon Quantum
- Modicon 884/984
- Siemens APT
- Siemens S7
|
- Allen-Bradley - PanelView
- Rockwell - RSView, RSBatch
- Siemens - WinCC, OSx
- Wonderware - InTouch, InTrack, InControl,
- nBatch, InSQL
|
To View Printable PDF Version of this Page
SRS Engineering Corporation is the leading manufacturer of Biodiesel Plants and Biodiesel Refineries. SRS Engineering also offers Biodiesel Plant management services. SRS has been involved in designing, planning, construction and equipment implementation of many Biodiesel Plants and Biodiesel Refineries.
