The SRS

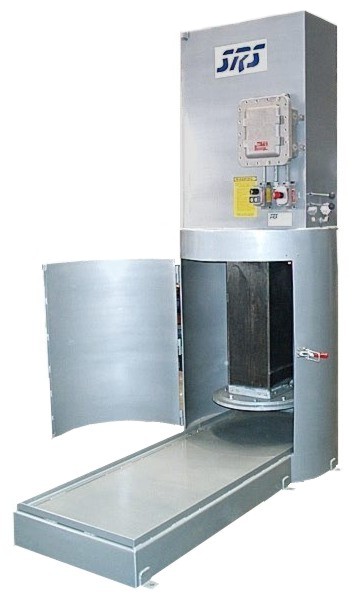

CMP-Series Drum Crushers/Drum Compactors are designed to crush 5 - 55 gallon drums and/or contents within a 55 gallon drum. It is also designed to compact liquid soaked materials and automatically collect the liquid in a drum. The
CMP-Series Drum Crushers/Drum Compactors are equipped with a 10-15 horse power motor.
The available Class 1, Division 1 motors and controls make the system suitable for use in hazardous areas including low level radiation applications. The CMP-Series generates 40,000 - 90,000 lbs. of compaction which crushes a standard 55 gallon drum to a 3 to 5 inch height, based on the model chosen (see Specifications Chart below). All CMP-Series Drum Crushers/Drum Compactors are all available in Electric, Pneumatic, and Gas versions.
Drum Crushers/Drum Compactors can be used in following industries:
- Manufacturing plants
- Processing Plants
- High-tech industries
- Treatment and disposal facilities
- Research laboratories
- Hospitals and medical clinics
- And more....
Features and Options Include:

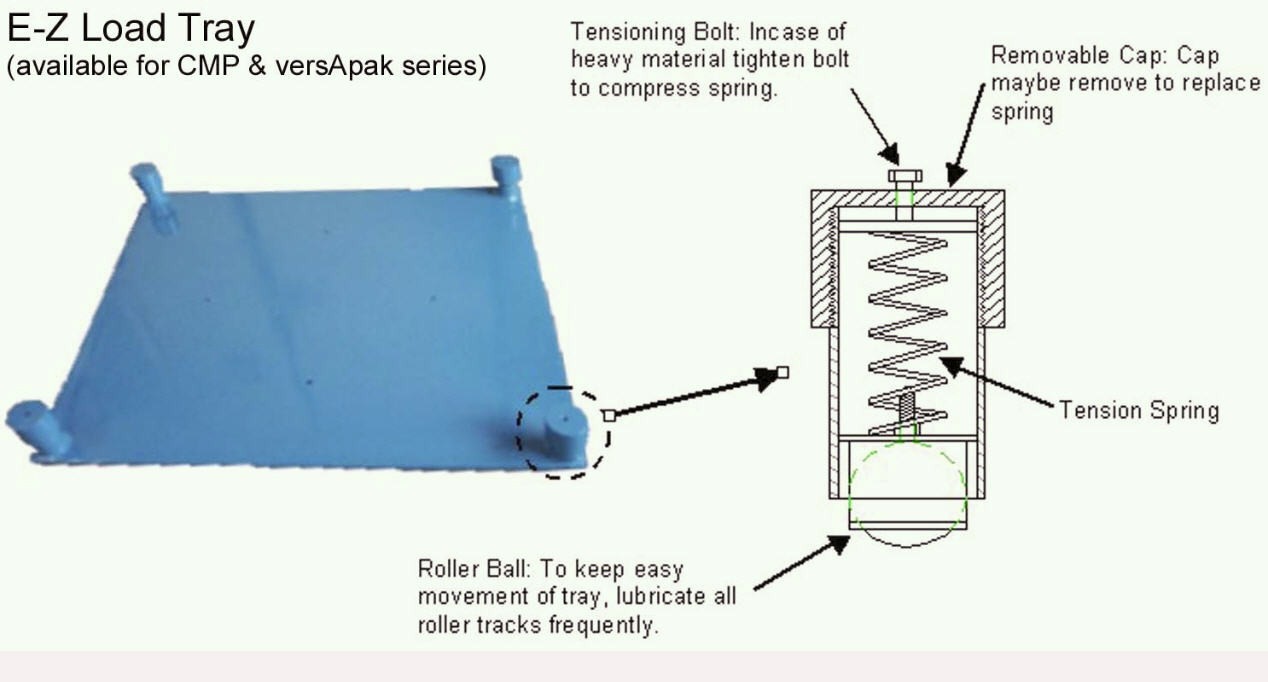

- EZ-Load barrel tray (see image below)
- Caster Wheels
- Liquid removal system
- Hazardous location (Explosion Resistant Package)
- Key starter
- Epoxy paint
- Weather covers
- VOC and dust filter system
- Tall drum chamber (For 85 gallon drums)
- Air filter systems HEPA/ULPA/Activated Carbon
- 12 x 14 guide sleeve for the cylinder
- 42" stoke
- Optional Conveyors
- Auto cycle valve: Automatically returns the cylinder after crushing
- Hydraulic safety door sensor prevents operation when door is open
- Heavy gauge crushing chamber for durability
- Fork lift pockets for the ease of relocation and loading and unloading
- 20 gallon hydraulic oil reservoir
- Electrical control box NEMA option for explosion proof applications
- Standard 230-460V, 3-phase, 50-60 HZ (Other voltage options available)
- 10-15 HP Motor
To Read Real SRS CMP-Series Customer Stories, CLICK HERE
 SRS offers four compactor systems currently approved by the U.S. General Services Administration (GSA) |
|
Compaction Ratio:
| Paint Filters |
6:1 - 9:1 |
| Rags, cloths, gloves |
4:1 - 8:1 |
| Absorbent materials (socks) |
4:1 - 7:1 |
| Resins |
4:1 - 8:1 |
| Paint Cans |
12:1 - 15:1 |
| Plastic Bottles |
12:1 - 15:1 |
| Drum Crushing Compaction |
6:1 - 14:1 |
|
Specifications:
| Specifications: |
CMP-40 |
CMP-60 |
CMP-90 |
| Height |
93" |
96" |
98" |
Footprint (Electric)
(Gas)
(Pneumatic) |
34" x 34"
34" x 56"
34" x 34" |
42" x 34"
42" x 56"
42" x 34" |
42"x34"
42"x56"
42"x34" |
Weight (Electric)
(Gas)
(Pneumatic) |
1420 Lbs
1420 Lbs
710 Lbs |
1960 Lbs
1960Lbs
1250 Lbs |
2400 Lbs
2400Lbs
1750 Lbs |
| Compaction Capacity |
Up to 85 Gallons |
| Compaction Force |
40,000 Lbs |
60,000 Lbs |
90,000 Lbs |
Cycle time(Electric)
(Gas)
(Pneumatic) |
68-110 Sec
45 Sec
69 Sec |
50-60 Sec
42 Sec
113 Sec |
50-60 Sec
50 Sec
120 Sec |
|
All of these units meet OSHA and JIC standards as well as CSA and UL standards.
